ASTM A572 Carbon Steel Profiles Grade 42 W Flange Beam W610 X 174

  • 1
  • 2

Brand Name : PUXIANG, LAISTEEL

Model Number : W610

Certification : ISO,CE

Place of Origin : China

MOQ : 3 ton

Price : US$515-US$615

Payment Terms : T/T, T/T + L/C

Supply Ability : 500ton/month

Delivery Time : 10-15 working days after receiveing advance payment

Description : Wide Flange Beams

Standard : ASTM A572

Size : W610 x 174

Length : 6m,12m or as required

Applications : Building homes,Freeways,Overpasses etc.

Package : Standard Export Package

Contact Now

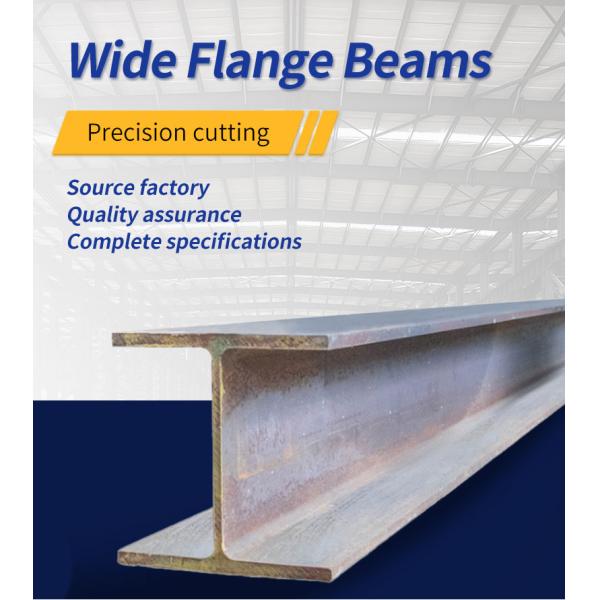

ASTM A572 Grade 42 Wide Flange Beams ,W610 x 174

W-beams, or wide flange beams, are stout, sturdy beams with wide flanges that are positioned perpendicularly to the web of the material giving them their characteristic shape and distinguishing them from I-beams. They’re frequently used as reinforcements in bridges, commercial buildings, and residential structures and can be fabricated from wood, aluminum, steel, or composite materials. Because of the wide flanges on the top and bottom, builders can more easily distribute heavy weight along the top of the beams without putting too much stress on the supports directly below. Along with offering superior weight distribution capabilities, they also have a better strength-to-weight ratio than square beams.
ASTM A572 Carbon Steel Profiles Grade 42 W Flange Beam W610 X 174

Metric Imperial Depth mm Width mm Thickness mm Web Thickness mm
W100 x 19 W4 x 13 106 103 8.8 7.1
W130 x 24 W5 x– 19 127–131 127–128 9.1–10.9 6.1–6.9
W150 x 13–37 W6 x– 8.5–25 148–162 100–154 4.9–11.6 4.3–8.1
W200 x 15–100 W8 x– 10–67 200–229 100–210 5.2–23.7 4.3–14.5
W250 x 18–167 W10 x– 12–112 251–289 101–265 5.3–31.8 4.8–19.2
W310 x 21–342 W12 x– 14–230 303–382 101–328 5.7–52.6 5.1–32.6
W360 x 33–1086 W14 x– 22–730 349–569 127–454 8.5–125 5.8–78
W410 x 39–149 W16 x– 26–100 399–431 140–265 8.8–25 6.4–14.9
W460 x 52–286 W18 x– 35–192 450–517 152–291 10.8–44.4 7.6–24.4
W530 x 66–248 W21 x– 44–166 525–571 165–315 11.4–34.5 18.9–19
W610 x 82–262 W24 x– 55–176 599–641 178–327 12.8–34 10–19
W690 x 125–289 W27 x– 84–194 678–714 253–356 16.3–34 11.7–19
W760 x 134–350 W30 x– 90–235 750–795 264–382 15.5–38.1 11.9–21.1
W840 x 176–359 W33 x– 118–241 835–868 292–403 18.8–35.6 14–21.1
W920 x 201–446 W36 x– 135–302 903–933 304–423 20.1–42.7 15.2–24
W1000 x 222–493 W40 x– 149–327 970–1036 300–308 21.1–54.1 16–30


Chemical Composition of ASTM A572 Steel

Chemical Alloy Grade 42 Grade 50 Grade 55 Grade 60 Grade 65 ≥ ½” thick Grade 65 over ½” to 1 ¼” thick
C 0.21% 0.23% 0.25% 0.26% 0.26% 0.23%
Mn 1.35% 1.35% 1.35% 1.35% 1.35% 1.65%
P 0.03% 0.03% 0.03% 0.03% 0.03% 0.03%
S 0.03% 0.03% 0.03% 0.03% 0.03% 0.03%
Si 0.15-0.40% 0.15-0.40% 0.15-0.40% 0.40% 0.40% 0.40%

ASTM A572 Carbon Steel Profiles Grade 42 W Flange Beam W610 X 174

ASTM A572 Carbon Steel Profiles Grade 42 W Flange Beam W610 X 174
ASTM A572 Carbon Steel Profiles Grade 42 W Flange Beam W610 X 174
